Job Name: Location: Date:
Purchaser: Engineer:
Submitted to: For Approval
Unit Designation: Schedule No.:
Cooling*
Rated Capacity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12,000 Btu/h
Minimum Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3,800 Btu/h
SEER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20.5 Btu/h/W
Total Input. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .960 W
* Rating Conditions (Cooling) - Indoor: 80ºF (27ºC) DB, 67ºF (19ºC) WB; Outdoor: 95ºF
(35ºC) DB, 75ºF (24ºC) WB.
Electrical Requirements
Power Supply . . . . . . . . . . . . . . . . . . . . 208 / 230V, 1-Phase, 60 Hz
Breaker Size. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 A
Voltage
Indoor - Outdoor S1-S2 . . . . . . . . . . . . . . . . . . . . . . AC 208 / 230V
Indoor - Outdoor S2-S3 . . . . . . . . . . . . . . . . . . . . . . . . . DC 12-24V
Indoor - Remote Controller. . . . . . . . . . . . . . . . . . . . . . . . . Wireless
OPERATING RANGE
Indoor Intake Air Temp. Outdoor Intake Air Temp.
Cooling
Maximum
90°F (32°C) DB,
73°F (23°C) WB
115°F (46°C) DB
Minimum
67°F (19°C) DB,
57°F (14°C) WB
14°F (-10°C) DB
Indoor Unit
MCA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 A
Fan Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.76 F.L.A.
Airfl ow (Quiet - Lo - Med - Hi - Super Hi)
Cooling . . . . . . . . . . . . . . . . 145 - 170 - 237 - 321 - 399 Dry CFM
109 - 134 - 201 - 286 - 364 Wet CFM
Sound Pressure Level (Quiet - Lo - Med - Hi - Super Hi)
Cooling . . . . . . . . . . . . . . . . . . . . . . . . 19 - 22 - 30 - 37 - 45 dB(A)
DIMENSIONS UNIT INCHES / MM
W 31-7/16 / 799
D 9-1/8 / 232
H 11-5/8 / 295
Weight. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 lbs. / 10 kg
External Finish . . . . . . . . . . . . . . . . . . . . .Munsell No. 1.0Y 9.2 / 0.2
Field Drainpipe Size O.D.. . . . . . . . . . . . . . . . . . . . .5/8" / 15.88 mm
Remote Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Wireless
(Optional Wired Remote Controller PAR-21MAA;
see Data Submittal Sheet)
Outdoor Unit
Compressor . . . . . . . . . . . . . . . . . . . . . . . . . . . . .DC Inverter-driven
MCA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 A
Fan Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.50 F.L.A.
Sound Pressure Level
Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 dB(A)
DIMENSIONS INCHES / MM
W 31-1/2 / 800
D 11-1/4 / 286
H 21-5/8 / 549
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77 lbs. / 35 kg
External Finish . . . . . . . . . . . . . . . . . . . . . . Munsell No. 3Y 7.8 / 1.1
Refrigerant Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . R410A
Refrigerant Pipe Size O.D.
Gas Side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3/8" / 9.52 mm
Liquid Side. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1/4" / 6.35 mm
Max. Refrigerant Pipe Length. . . . . . . . . . . . . . . . . . . . . 65 ft. / 20 m
Max. Refrigerant Pipe Height Difference . . . . . . . . . . . . 40 ft. / 12 m
Connection Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Flared

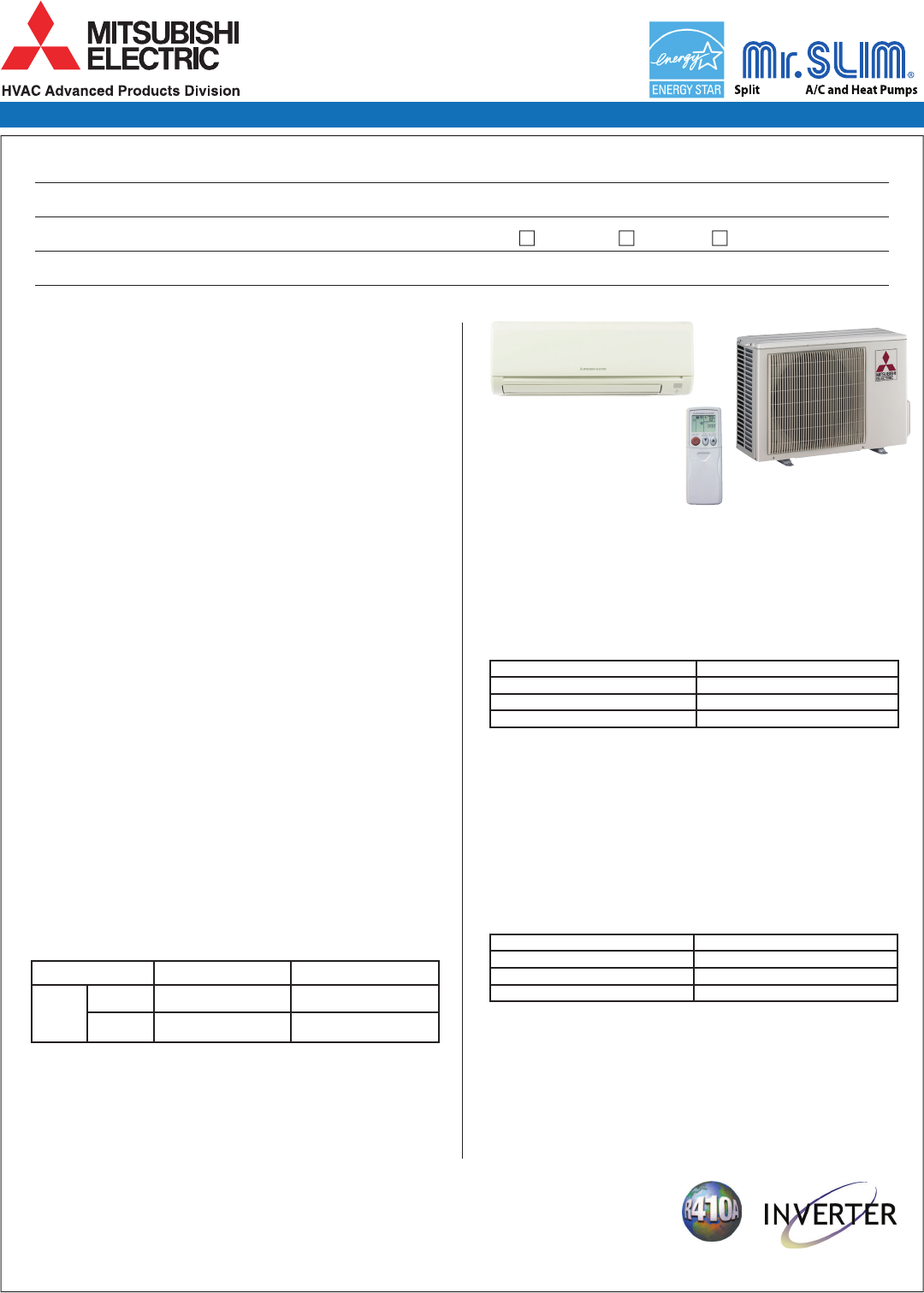

SUBMITTAL DATA: MSY-GE12NA & MUY-GE12NA 12,000 BTU/H WALL-MOUNTED AIR-CONDITIONING SYSTEMS
OPTIONAL ACCESSORIES
Outdoor Unit
• Drain Socket Assembly (MAC-860DS)
Indoor Unit
• M-NET Control Adapter (MAC-399IF)
• MA Contact Terminal Interface (MAC-397IF)
• Wired Remote Controller (PAR-21MAA; requires MAC-397IF)
• Condensate Pump (230V; SI3100-230)
• Anti-allergy Enzyme Filter (Two pieces per set; MAC-408FT-E)
GENERAL FEATURES
• Wall-mounted indoor unit
• Standard Hybrid Catechin Prefi lter is included with indoor unit
• Quiet operation
• Choice of fan speeds: Quiet, Low, Medium, High, and Super High;
Auto fan speed control also included
• Wireless remote controller is included; PAR-21MAA wired
remote controller can be installed as an option
• Indoor unit powered from outdoor unit using A-Control
• Auto restart following a power outage
• Limited warranty: fi ve years on parts and defects and seven years
on the compressor
Indoor Unit: MSY-GE12NA
Wireless Remote
Controller
Outdoor Unit: MUY-GE12NA
